GRMHD Simulations of Visibility Amplitude Variability for Event Horizon Telescope Images of Sgr A*

The Event Horizon Telescope (EHT) is a very long baseline interferometer (VLBI) with baselines ranging from Arizona to California and from the South Pole to Europe. It will measure interferometric visibilities and use them to generate, for the first time, black hole images with horizon scale resolution (see, e.g., Doeleman et al. 2009). This will not only allow us to test theories of accretion physics but will also give us an unprecedented look at general relativistic effects in the strong field regime (Psaltis & Johannsen 2011).

Sagittarius A* (Sgr A*), the black hole at the center of our galaxy, is one of the primary targets for the EHT. It has a large angular size, a well constrained mass and distance (Ghez et al. 2008; Gillessen et al. 2009), and a broadband spectrum that has been studied for more than a decade (see Baganoff et al. 2001 and Genzel et al. 2003 for early studies). The source-integrated monochromatic flux of Sgr A* has been observed to be variable at many wavelengths on timescales of ∼hours including at 1.3 mm, the wavelength at which the EHT will operate (e.g., Marrone et al. 2008; Porquet et al. 2008; Do et al. 2009). The EHT itself has also observed variability at 1.3 mm (Fish et al. 2011), indicating that Sgr A* is structurally variable on scales of a few Schwarzschild radii.

Improvements in our theoretical understanding of black hole accretion have led to a convergence in the properties of GRMHD simulations (see, e.g., Chan et al. 2009, 2015a, 2015b; Mościbrodzka et al. 2009; Dexter et al. 2010, 2012; Shcherbakov & Baganoff 2010; Shcherbakov et al. 2012; Mościbrodzka & Falcke 2013) and semi-analytic models inspired by them (e.g., Broderick & Loeb 2006; Broderick et al. 2011, 2016) that can account for most observed characteristics of Sgr A*. A variety of these models has been directly compared to early EHT data in order to perform parameter estimation and model comparison.

In a previous set of papers, we reported a series GRMHD simulations with high spatial and time resolutions (Chan et al. 2015a, 2015b). We used these simulations first to study the variability as a function of wavelength for the source-integrated monochromatic flux of Sgr A* and found two kinds of variability: long timescale flaring events and shorter timescale, persistent variability originating from the turbulent flow. Our disk-dominated models are able to reproduce the flaring events observed from Sgr A* at longer wavelengths but additional physics (such as nonthermal electrons) is required to reproduce X-ray flares (Ball et al. 2016; see also Chan et al. 2009; Dodds-Eden et al. 2010).

Our simulations show that both long and short timescale variability occur at event horizon scales. The structure of the emission region and, therefore, the interferometric visibilities predicted by the simulations are highly variable. At event horizon scales, the dynamical timescale for Sgr A* is about 10 minutes, which is similar to the typical exposure time for the EHT. However, since the EHT is a VLBI instrument, it relies on the rotation of the Earth to trace baseline tracks in u−v space. Therefore, during a single night of observation, different data points along baseline tracks correspond to different realizations of the turbulent structure of Sgr A*. Traditional image reconstruction algorithms rely on the assumption that the black hole image structure remains stationary on typical observation timescales, which range from about 1 hour for the shortest tracks to over 10 hours for the longest.

In order to account for the expected variability, a variable overall normalization of the image brightness between observing epochs was explicitly allowed for in some earlier studies but any variability on the image structure was assumed to be negligible (e.g., Broderick et al. 2009; Mościbrodzka et al. 2009). In other analyses, small-scale Gaussian brightness fluctuations were added to smooth semi-analytical models (e.g., Broderick et al. 2016) or the effects of image-structure variability on the parameter estimation were explored a posteriori (e.g., Dexter et al. 2010). Finally, Lu et al. (2016) explored methods for mitigating intrinsic source variability that introduces time variability to the image structure using one GRMHD simulation.

In this paper, we take a step back and explore how the variability that we see in GRMHD simulations of accretion flows will be manifest on the u−v plane. Specifically, we aim to characterize and understand the variability in the location of salient features of black hole images in u−v space, using these simulations. Our study allows us to explore the degree to which these salient features in the u−v plane, which primarily determine the structures in the reconstructed images, evolve during the duration of an EHT imaging observation. It also helps us assess whether the location of such features can be used to measure fundamental properties of the black hole that are fixed, such as the size of the black hole shadow or the black hole spin.

Because we want to quantify the time evolution of these features in the u−v plane as predicted by GRMHD simulations, we do not simulate particular EHT observations, consider the effects of the Earth's rotation, or consider interstellar scattering. Of course, the variability in the visibility amplitudes that the EHT will measure will ultimately be a combination of the intrinsic source variability, the effect of the Earth's rotation, and of the scattering screen. However, our goal is not to simulate a mock observation or perform a parameter estimation. We rather aim to test the degree to which one of the key assumptions in VLBI image reconstruction, i.e., that the images can be treated as stationary, will affect the interpretation of Sgr A* observations.

To perform this analysis, we calculate and study the time-dependent visibilities at 1.3 mm for the five best-fit models of the GRMHD simulations that we reported earlier (Chan et al. 2015a). These models were chosen so that their average broadband spectra and image sizes at 1.3 mm match observations. We employ analytic models to understand the behavior and significance of various features in the visibility amplitudes and use our simulations to investigate the ability of analytic models to capture the gross features of the black hole images. We explore the effects of intrinsic source variability on EHT closure phases in a separate paper (Medeiros et al. 2016).

In previous papers, we explored a variety of GRMHD+ray tracing simulations for the accretion flow around Sgr A* (see Chan et al. 2015b and references therein for a detailed discussion of the simulation in the context of other related work). These three-dimensional models were created using HARM (Gammie et al. 2003; Narayan et al. 2012; Sa̧dowski et al. 2013) for the GRMHD simulations and GRay (Chan et al. 2013) for solving the radiative transfer equation along null geodesics. We used simulations with a time resolution of 10 GMc⁻³, equivalent to 212 s, where G is the gravitational constant, $M=4.3\times {10}^{6}\,{M}_{\odot }$ is the mass of Sgr A*, and c is the speed of light. For the remainder of this paper, we employ gravitational units and set G = c = 1.

GRay employs the fast light approximation (see, e.g., Dolence et al. 2009; Mościbrodzka et al. 2011; Shiokawa et al. 2012 for models allowing for a finite speed of light) in which the speed of light is assumed infinite. At horizon scales, the light crossing time is ∼20 s, which is an order of magnitude smaller than our time resolution.

We explored a large range of physical conditions by varying the black hole spin (a = 0 to 0.9), the accretion rate, the magnetic field configuration, and the thermodynamic prescriptions for the electrons used in the plasma models. Specifically, we explored two different initial magnetic field configurations; the first consists of multiple small loops and leads to weak, turbulent fields near the horizon and an emitting region at 1.3 mm that is dominated by the disk region (SANE, Standard and Normal Evolution, see also, McKinney & Gammie 2004; Hawley & Krolik 2006; Shiokawa et al. 2012; Mościbrodzka & Falcke 2013; Mościbrodzka et al. 2014 for other SANE-like GRMHD simulations); the second consists of an initial magnetic field loop and leads to coherent magnetic field structures near the horizon and an emitting region at 1.3 mm that is dominated by the jets (MAD, Magnetically Arrested Disk, see, e.g., McKinney et al. 2012; Tchekhovskoy et al. 2012).

Out of a large number of simulations, we identified five models that best fit the time averaged observations of Sgr A* (Chan et al. 2015b). The specific criteria we used to constrain these models are (a) a flux and a slope at 10¹¹–10¹² Hz that matches observations, (b) a flux at ≃10¹⁴ Hz that falls within the observed range of the highly variable infrared flux, (c) an X-ray flux that is consistent with 10% of the observed quiescent flux, i.e., the percentage which has been attributed to emission from the inner accretion flow (Neilsen et al. 2013), and (d) a size of the emission region that is consistent with the size determined by the early EHT observations (Doeleman et al. 2008). All models have an observer inclination of i = 60° with respect to the spin axis of the black hole.

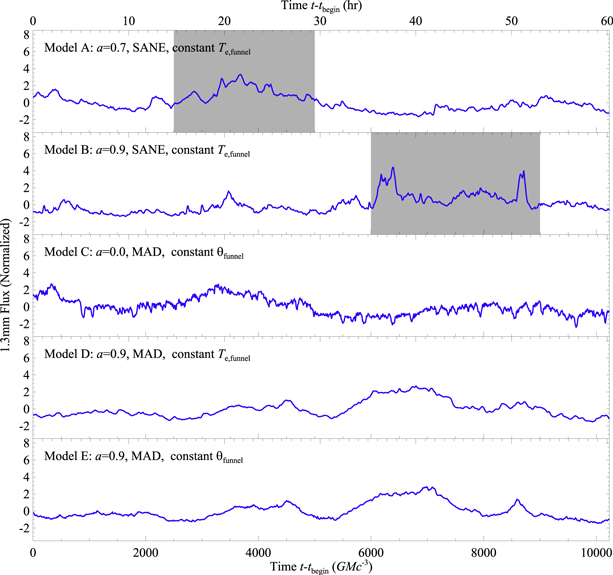

Figure 1 shows the light curves for the five models we consider in this paper. These light curves were calculated by computing the source-integrated monochromatic flux from each model for 1024 late-time snapshots for a total duration that corresponds to 60 hr for the assumed black hole mass. Models A and B have SANE flows and the same plasma model but differ on the choice of black hole spin: Model A has a = 0.7, while Model B has a = 0.9. Both models A and B show large amplitude, short timescale variability that was shown to be consistent with broadband observations in Chan et al. (2015a). Models D and E have the same black hole spin of a = 0.9 and the same MAD configuration, but differ on the choice of the plasma model used. Both models D and E show only long timescale, low amplitude variability. Model C consists of a MAD flow and a black hole spin of a = 0. Model C shows very fast, quasiperiodic, low amplitude variability.

Zoom In Zoom Out Reset image size

In order to focus on the persistent variability from the turbulent flow, we ignore hereafter the intervals with large flaring events, shown in gray in Figure 1. These events were already discussed in Chan et al. (2015a).

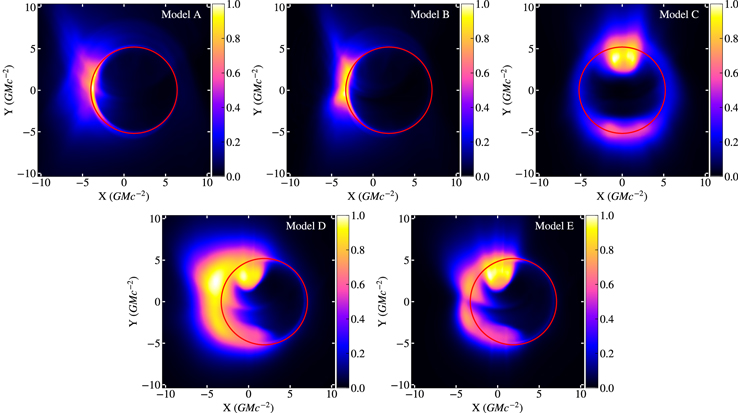

Figure 2 shows the average 1.3 mm images for the five models we consider. The SANE models (A and B) show a mostly connected emission region and appear to have their emission dominated by the disk. Models C and E, on the other hand, show disconnected emission regions and have most of their emission originating from the bases of the jets. Model D is a hybrid with a bright peak at the base of the jet (as in Models C and E) as well as a crescent shape (as in A and B). The red circles in the figures have a radius of $\sqrt{27}M$, i.e., the expected shadow radius of a nonrotating black hole according to general relativity. The images of the black hole shadow for models A, B, D, and E appear shifted to the right and have most of their emission originating from the left side due to Doppler beaming in a Kerr metric. The black hole shadow for model C is not shifted from the center and is much more symmetric than the others because the black hole spin in this model is zero.

Zoom In Zoom Out Reset image size

Although Figure 2 shows resolved images of Sgr A* at 1.3 mm, the EHT is an interferometer and will measure the complex Fourier components of Figure 2. To explore the properties of the actual observables, we show in Figure 3 the average 1.3 mm visibility amplitudes for the five models. We calculated these visibility amplitudes by performing, on each snapshot, the two-dimensional Fourier transform

$$\begin{eqnarray}&&V(u,v)=\iint I(\alpha ,\beta ){e}^{-2\pi i(u\alpha +v\beta )}d\alpha d\beta ,\end{eqnarray} \tag{ 1 }$$

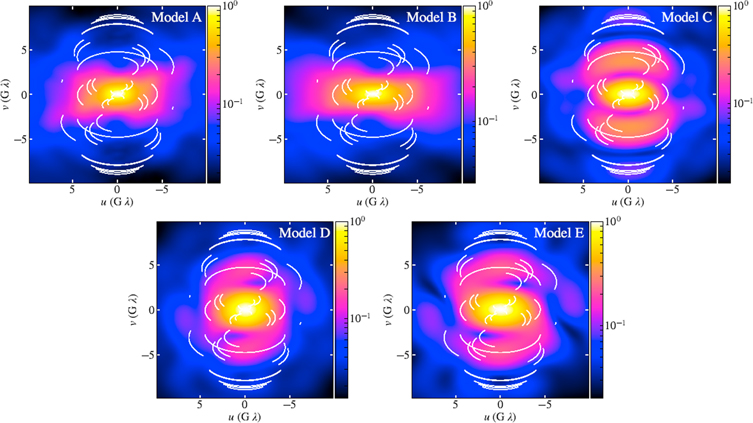

where α ≡ X/D, β ≡ Y/D, and D is the distance to Sgr A*, and then taking the mean magnitude of the complex Fourier components. The white lines are the current and planned tracks of the various baselines of the EHT shown for a particular N–S orientation of the black hole (see, e.g., Doeleman et al. 2009). The visibility amplitude maps of models A and B appear elongated in the horizontal direction. This is because the Fourier transform is the conjugate of the original image and the original image is a crescent elongated in the vertical direction. Models C, D, and E show multiple emission peaks in the original image along the vertical direction. This results in multiple peaks in the visibility amplitude maps, along the same axis. Model C appears to be more symmetric in both the original image and its transform.

Zoom In Zoom Out Reset image size

Even though the visibility maps shown in Figure 3 allow us to identify the gross features of the images, they do not faithfully represent the observations that the EHT will obtain. As discussed in the Introduction, the EHT relies on the rotation of the Earth to increase its coverage of the u−v plane and, therefore, make a better image. However, Sgr A* is variable on timescales that are much shorter than a day. Since the EHT will observe Sgr A* for multiple days each year for multiple years, it will measure a distribution of data points at each u−v point along the baseline tracks. We now aim to quantify the effect of variability on the structure of the visibility amplitude.

3.1. SANE Models

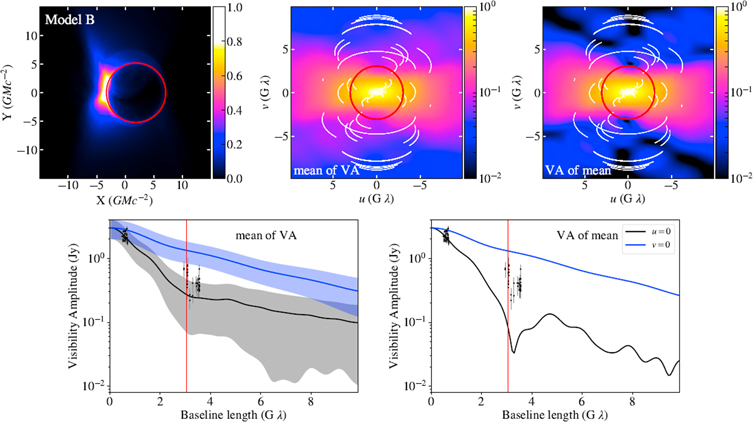

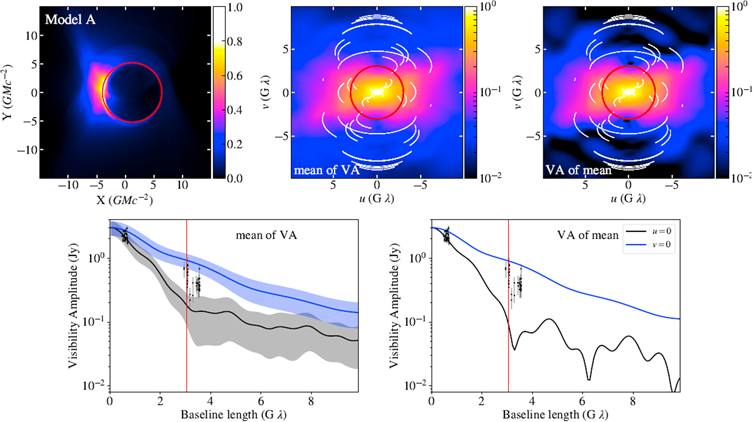

The SANE models A and B have their 1.3 mm emission structure dominated by the disk and have crescent-like shapes. In Figures 4 and 5, we show the mean simulated images, the means of the visibility amplitudes of each snapshot, and the visibility amplitudes of the mean simulated images, for these SANE models. Note that the visibility amplitude is the magnitude of the Fourier transform of the image. Because calculating the amplitude is a nonlinear operation, the order of operations for taking the mean and calculating the amplitude matters. Comparing the mean visibility amplitudes to the visibilities of the mean images reveals an expected but important consequence of variability. The visibilities of any snapshot (including of the average image) have significantly more structure than the average visibilities.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

To explore the behavior of the structure of visibility amplitudes further, we turn our focus to the images from the individual snapshots. In the various panels of Figure 6, we show (a) the simulated images, (b) the projections of these images along directions parallel and perpendicular to the black hole spin axis, (c) the visibility amplitudes, and (d) the cross sections of the visibility amplitudes taken along directions parallel and perpendicular to the black hole spin axis for five snapshots from model B. The projection-slice theorem states that the Fourier transform of the projection of a two-dimensional image onto some axis is equal to a slice of the Fourier transform of the image as long as the slice is parallel to the projection axis and intersects the center of the visibility amplitude map. As a result, the cross sections of the visibility amplitudes shown in the rightmost panels are just the one-dimensional Fourier transforms of the projections shown in the second column of panels. These cross sections are representative of the range of behavior of the two-dimensional visibilities since the parallel cross section probes the closest deep minimum to the zero baseline, while the visibility amplitudes are smoothly decreasing in the perpendicular cross section. The cross sections are good representations for the range of behavior that could be observed for different orientations.

Zoom In Zoom Out Reset image size

In the rightmost column, we see that the visibility amplitude cross sections perpendicular to the spin axis decrease slowly and smoothly, while those parallel to the spin axis have a lot more structure. Particularly, the cross sections parallel to the spin axis often have minima, but the location and depth of these minima are variable. By taking the average of the visibility amplitudes, we lose all information about the minima and are left with a smoothly decreasing visibility amplitude, as was seen in the mean of the visibilities in Figures 4 and 5.

To understand the behavior described above, we employ a simple analytic model to represent the properties of the emission regions. Since the SANE models (A and B) have their emission dominated by the Doppler boosted disk, it roughly resembles a crescent shape. Following Kamruddin & Dexter (2013), we use a model of an asymmetric ring, defined as the difference between two offset disks with different radii, which becomes a crescent as its asymmetry grows. The diagram in Figure 7 shows the parameters used to describe our asymmetric ring model. The Fourier transform of the asymmetric ring is given by

$$\begin{eqnarray}&&{V}_{\mathrm{cres}}(k)=\displaystyle \frac{2\pi {I}_{0}{R}_{1}}{k}[{J}_{1}({R}_{1}k)-{e}^{-2\pi i({\alpha }_{0}u)}{{RJ}}_{1}({{kR}}_{2})],\end{eqnarray} \tag{ 2 }$$

where $k\equiv 2\pi \sqrt{{u}^{2}+{v}^{2}}$, J₁ are Bessel functions of the first kind, I₀ is the constant surface brightness of the disks, α₀ is the displacement of the smaller disk from the center of the larger disk in the α direction, and R = R₂/R₁. Hereafter, we set R₁ = 1 without loss of generality. We also define the widths of the asymmetric ring on the left and right sides of the image as w_l ≡ R₁ − R₂ + α₀ and w_r ≡ R₁ − R₂ − α₀.

Zoom In Zoom Out Reset image size

A cross section of the visibilities parallel to the black hole spin axis is then given by

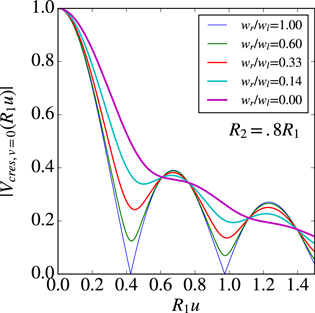

$$\begin{eqnarray}&&{V}_{\mathrm{cres},u=0}(v)=\displaystyle \frac{{I}_{0}}{v}[{J}_{1}(2\pi v)-{{RJ}}_{1}(2\pi {Rv})],\end{eqnarray} \tag{ 3 }$$

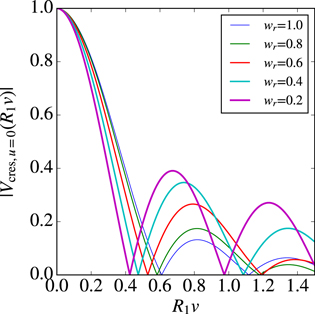

which only depends on R, the ratio of the two radii, and not on α₀, the displacement of the smaller disk. In other words, the visibility amplitude along the directions parallel to the spin axis will be the same regardless of the asymmetry of the ring. For an infinitesimally thin ring, i.e., when w_l ≪ R₁ and w_r ≪ R₁, the visibility amplitude along a direction parallel to the spin axis has a minimum at u ≃ 0.4/R₁. However, Figure 8 shows that changing the width of the ring, w_l = w_r = R₁ − R₂, changes the location of the minima. In the SANE simulations (A and B) the width of the approximately crescent shape is highly variable because of different turbulent structures appearing and disappearing from the Doppler boosted side of the crescent. This is why the locations of the minima are also highly variable.

Zoom In Zoom Out Reset image size

The cross section of the visibility function perpendicular to the spin axis of the black hole (v = 0) is equal to

$$\begin{eqnarray}&&{V}_{\mathrm{cres},v=0}(u)=\displaystyle \frac{{I}_{0}}{u}[{J}_{1}(2\pi u)-{e}^{-2\pi i{\alpha }_{0}u}{{RJ}}_{1}(2\pi {Ru})].\end{eqnarray} \tag{ 4 }$$

Although the visibility amplitude of a cross section parallel to the spin axis did not depend on the displacement α₀, which measures the asymmetry of the ring, the perpendicular cross section does. Figure 9 shows the dependence of the visibility amplitude on the degree of asymmetry of the ring w_r/w_l. As the ring becomes more asymmetric, i.e., as ${w}_{r}/{w}_{l}\to 0$, the visibility amplitude of the cross section perpendicular to the spin axis becomes smoother and all traces of minima are lost. Due to the effects of Doppler beaming, our simulations are completely dominated by one side of the ring. This is why the cross sections of the visibilities perpendicular to the spin axis (e.g., the blue curves in Figures 4 and 5) are broad and monotonically decreasing, while the parallel cross sections have strong local minima.

Zoom In Zoom Out Reset image size

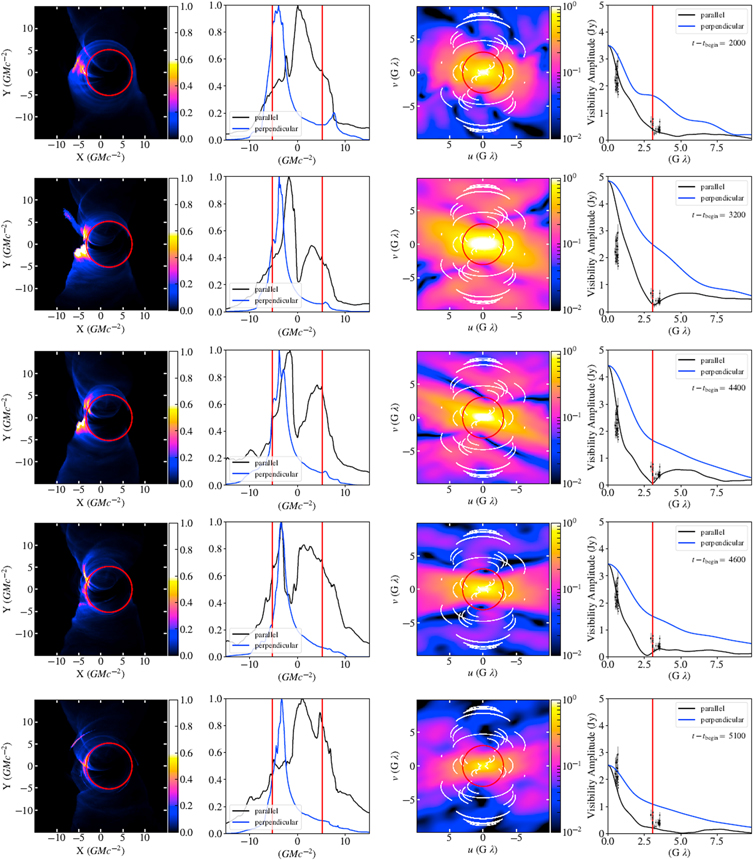

The model described above cannot fully encompass all of the variable structure that we see in Figure 6. In the GRMHD simulations, the emission is not always a simple crescent. In some snapshots, the emission along the equatorial plane gets blocked by the colder disk, which causes the emission to have two disjointed regions. When this occurs, the visibility amplitudes have short-lived features similar to those of the MAD models, which have two disjointed peaks of emission and will be discussed below.

In summary, for most instances, the behavior of the SANE models (A and B) can be roughly modeled by an asymmetric ring of variable width. The behavior of the cross section of the visibility amplitude that is parallel to the spin axis does not depend on the asymmetry of the ring and exhibits minima. The location of these minima depends on the width of the asymmetric ring, which is variable. Because of this variability, taking the average of the visibility amplitude over time will result in a visibility amplitude with reduced or no minima. The direction perpendicular to the spin axis, however, does depend on α₀. An extremely offset ring, where the thinnest part has a thickness of zero, has a monotonically decreasing visibility amplitude.

3.2. MAD Models

The 1.3 mm emission of the MAD models (C, D, and E) is dominated by the funnels and jet footprints; because of this, it is characterized broadly by two peaks. Throughout the simulations, the relative widths and amplitudes of the peaks change but the distance between them remains approximately constant since it is set by the size of the black hole shadow.

Figures 10 and 11 are equivalent to Figure 4 but for Models C and D, respectively. Focusing on the one-dimensional cross sections of the visibility amplitude of the mean and the mean of the visibility amplitudes, the cross sections perpendicular to the spin axis have less pronounced minima, which are located at baselines much larger than expected for the size of Sgr A*. The cross sections parallel to the spin axis show much more pronounced minima, close to the expected location for the size of Sgr A*, much like the SANE models. Unlike the SANE models, however, the means of the visibility amplitudes and the visibility amplitudes of the means have very similar structures and both have a minimum in the vertical direction. Furthermore, the minima appear to be in the same locations and the ranges of amplitudes at a given baseline are much smaller than those of the SANE models. This indicates that the existence and location of a visibility minimum is more persistent in MAD models than in SANE models.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

To understand the behavior of the MAD models, we employ an approximate model of their emission using two Gaussians separated by a distance d in the direction parallel to the spin axis but with no separation in the direction perpendicular to the spin axis. We define this model as (see Figure 12)

$$\begin{eqnarray}I(\alpha ) & = & {A}_{1}{e}^{-[{(\alpha -{\alpha }_{01})}^{2}/2{\sigma }_{\alpha 1}^{2}+{(\beta -{\beta }_{01})}^{2}/2{\sigma }_{\beta 1}^{2}]}\\ & & +{A}_{2}{e}^{-[{(\alpha -{\alpha }_{02})}^{2}/2{\sigma }_{\alpha 2}^{2}+{(\beta -{\beta }_{02})}^{2}/2{\sigma }_{\beta 2}^{2}]}.\end{eqnarray} \tag{ 5 }$$

To simplify our notation, we set α₀₁ = β₀₁ = 0 such that one Gaussian is peaked at the origin; set α₀₂ = 0 so that the Gaussians are separated by a distance d = β₀₂ along the β axis, and define the ratio of amplitudes A ≡ A₂/A₁. This reduces to an overall normalization of A₁, which we ignore to get

$$\begin{eqnarray}&&I(\alpha )={e}^{-[{\alpha }^{2}/2{\sigma }_{\alpha 1}^{2}+{\beta }^{2}/2{\sigma }_{\beta 1}^{2}]}+{{Ae}}^{-[{\alpha }^{2}/2{\sigma }_{\alpha 2}^{2}+{(\beta -d)}^{2}/2{\sigma }_{\beta 2}^{2}]}.\end{eqnarray} \tag{ 6 }$$

We further define the quantities

$$\begin{eqnarray}\alpha ^{\prime} & \equiv & \displaystyle \frac{\alpha }{{\sigma }_{\alpha 1}},\,\,\,{\sigma }_{\alpha }^{\prime} \equiv \displaystyle \frac{{\sigma }_{\alpha 2}}{{\sigma }_{\alpha 1}},\,\,\,\beta ^{\prime} \equiv \displaystyle \frac{\beta }{{\sigma }_{\beta 1}},\\ {\sigma }_{\beta }^{\prime} & \equiv & \displaystyle \frac{{\sigma }_{\beta 2}}{{\sigma }_{\beta 1}},\,\,\,d^{\prime} \equiv \displaystyle \frac{d}{{\sigma }_{\beta 1}},\end{eqnarray} \tag{ 7 }$$

which in turn gives

$$\begin{eqnarray}I(\alpha ) & = & {e}^{-(\alpha {{\prime} }^{2}+\beta {{\prime} }^{2})/2}+{{Ae}}^{-(\alpha {{\prime} }^{2}/{\sigma }_{\alpha }^{\prime} +{(\beta ^{\prime} -d^{\prime} )}^{2}/{\sigma }_{\beta }{{\prime} }^{2})/2}\\ & = & {e}^{-({\alpha }^{2}+{\beta }^{2})/2}+{{Ae}}^{-({\alpha }^{2}/{\sigma }_{\alpha }+{(\beta -d)}^{2}/{\sigma }_{\beta }^{2})/2}.\end{eqnarray} \tag{ 8 }$$

In this last expression, we omitted the primes for clarity. We now take the Fourier transform of the intensity to obtain

$$\begin{eqnarray}{V}_{2{\rm{g}}}(k) & = & 2\pi {e}^{-({u}^{2}+{v}^{2})2{\pi }^{2}}\\ & & +2\pi A{\sigma }_{\alpha }{\sigma }_{\beta }{e}^{-({u}^{2}{\sigma }_{\alpha }^{2}+{v}^{2}{\sigma }_{\beta }^{2})2{\pi }^{2}}{e}^{-2\pi {idv}}.\end{eqnarray} \tag{ 9 }$$

Zoom In Zoom Out Reset image size

The visibility along a direction parallel to the spin axis takes the form

$$\begin{eqnarray}&&{V}_{2{\rm{g}},u=0}(v)=2\pi {e}^{-2{(\pi v)}^{2}}+2\pi A{\sigma }_{\alpha }{\sigma }_{\beta }{e}^{-2{(\pi {\sigma }_{\beta }v)}^{2}}{e}^{-2\pi {idv}}.\end{eqnarray} \tag{ 10 }$$

Its magnitude, $| {V}_{2{\rm{g}}}(v)|$, has a minimum when V_2g(v) is minimum, i.e., when the second term is real and negative. This occurs when

$$\begin{eqnarray}&&{vd}=(2n+1)/2,\end{eqnarray} \tag{ 11 }$$

i.e., the location of the minimum depends only on the separation between the two Gaussians and not on any of their other properties. Note that, in this configuration, the location of the minimum occurs at a baseline length that is different compared to the case of an asymmetric ring model (see Figures 10 and 11). This minimum will reach zero when the amplitudes of the two terms in the sum are equal, or when

$$\begin{eqnarray}&&A=\displaystyle \frac{1}{{\sigma }_{\alpha }{\sigma }_{\beta }}{e}^{-{\pi }^{2}(1-{\sigma }_{\beta }^{2}){(2n+1)}^{2}{/2d}^{2}}.\end{eqnarray} \tag{ 12 }$$

The simplified analytic model shows that two Gaussians do not always produce a null in the visibility amplitude. For a given separation d and width ratios σ_α and σ_β, there is only one value of the ratio of the brightness of the two Gaussians, A, that gives rise to a null. When a local minimum does not reach zero, the properties of the two components of the image affect the depth of the minimum. This is shown in Figure 13 for the dependence of the depth of the minimum on the ratio A of the brightness of the two components of the image and, in Figure 14, for the dependence of the ratio of widths of the two components along the spin axis of the black hole. In our MAD simulations, the relative amplitudes and widths of the two peaks is highly variable; however, the distance between the two peaks remains approximately constant and is set by the size of the black hole shadow and the observer inclination. Because of this, the depth of the minimum varies but the location is approximately constant. When we average minima of various depths but constant location, we get a minimum in the same location of an average depth.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The cross sections of the visibility amplitude maps perpendicular to the spin axis do not exhibit nulls. Analytically, the perpendicular cross sections of the visibility amplitudes of two Gaussians separated in the vertical direction is given by

$$\begin{eqnarray}&&{V}_{2{\rm{g}},v=0}(u)=2\pi {e}^{-2{(\pi u)}^{2}}+2\pi A{\sigma }_{\alpha }{\sigma }_{\beta }{e}^{-2{(\pi {\sigma }_{\alpha }u)}^{2}},\end{eqnarray} \tag{ 13 }$$

which is just the addition of two Gaussians both peaked at the origin, and therefore has no nulls.

In our simulations, the visibility amplitudes of the MAD models have a consistent minimum in the direction parallel to the spin axis of the black hole. The location of the minimum is approximately constant and is determined primarily by the size of the black hole shadow. Averaging over time does not appear to erase the minimum as it did in the SANE models.

In this paper, we quantified the effect of MHD turbulence driven variability on the structure of visibility amplitudes of the upcoming imaging observations of Sgr A* with the EHT. We explored the effect of variability on the structure of the emission region in order to understand the challenges that variability will pose for image reconstruction of EHT observations. We created and analyzed mock images and u−v maps using GRMHD simulations, that were constrained in previous work such that their time averaged broadband spectrum and 1.3 mm image size match observations of Sgr A*.

We found that the visibility amplitude of the SANE models resembles that of a highly asymmetric ring. The width of the asymmetric ring is highly variable due to the turbulent accretion flow. The visibility amplitude in the direction parallel to the spin axis of the black hole typically exhibits minima with locations that depend on the width of the asymmetric ring. Since the location of the minima in the direction parallel to the spin axis depends on the width of the emitting region, and is therefore variable, any information that could be inferred by the presence of a minimum is lost by averaging over time.

The SANE models rarely exhibit minima in the direction perpendicular to the spin axis of the black hole. The reason for this is that, due to Doppler beaming, the majority of emission comes from the left of the spin axis (for the spin orientation we use in our figures), with negligible emission coming from the right. This asymmetry does not affect the visibility amplitude in the direction parallel to the spin axis, but affects the depth of minima in the direction perpendicular to the spin axis. For the perpendicular direction, a highly asymmetric ring has a visibility amplitude that decreases monotonically.

In contrast, the images and visibility amplitudes of the MAD models are characterized by two bright spots at the footpoints of the jets, separated by a relatively constant distance equal to the size of the black hole shadow. For the MAD models, the visibility amplitudes in the direction parallel to the spin axis have persistent nulls in constant locations but with variable depths. The locations of the minima in the direction parallel to the spin axis of MAD models depend strongly on the separation between the two image components. Since the distance between the emission peaks in our simulations are set primarily by the size of the black hole shadow and are approximately constant, the location of the minimum is constant. However, varying the widths, or amplitudes, of the image components affects the depths of the minima. On the other hand, the visibility amplitudes in the direction perpendicular to the spin axis have much less pronounced minima at larger baselines.

As discussed in the Introduction, typical EHT exposure times are around 10 minutes and typical imaging runs span a few hours. Our 60 hr simulations are longer than a typical observing run but shorter than the timespan between different observing epochs. Indeed, the EHT is expected to observe Sgr A* for a few nights in each observing cycle, with multiple cycles to occur in successive years. Therefore, the EHT data set as a whole will span multiple years and will sample a broad range of the variability of the source. If the longest timescale of significant source variability is of the order of a few hours to a day, then the range of variability that our models exhibit will be representative of the expected range of variability in the data, when multiple epochs are combined.

A second important issue that we can address with our simulations is the effect of the length of each imaging run on the degree of expected variability. To achieve this, we divided each one of our simulations into overlapping segments of constant length and calculated the fractional rms variability for each segment of the visibility amplitude at three locations in the u−v plane that correspond to the Arizona–California–Hawaii baselines. We then use the measured values of rms variability and calculate their average and standard deviation. In all cases, we calculate the fractional variability by dividing the standard deviation with the mean visibility amplitude of the entire 60 hr simulation. Finally, we explored the effect on the fractional rms variability of using different exposure (i.e., averaging) times for each measurement of a visibility amplitude.

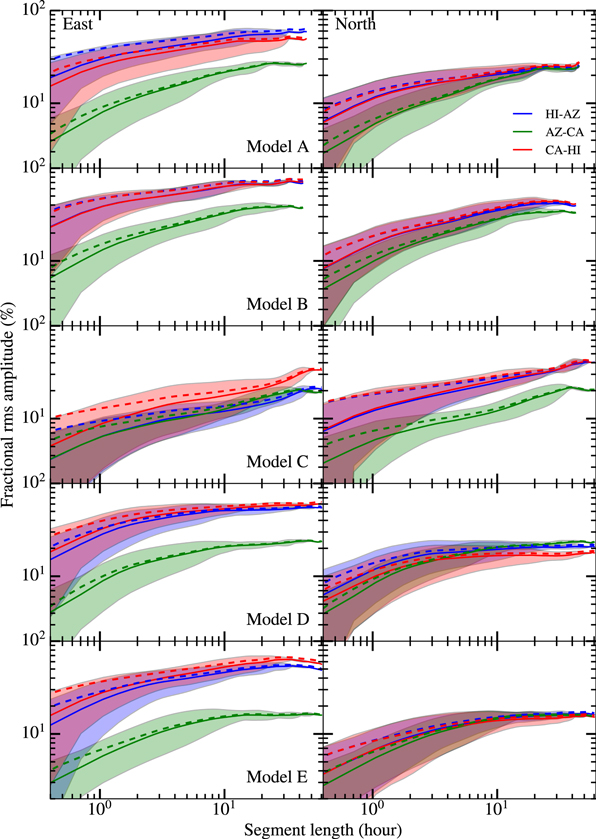

In Figure 15, we show the dependence of these fractional rms variability amplitudes on the length of the segments. For displaying the mean of the rms variability, we use dashed and solid lines to show the effect of changing the exposure time from the 3.5 minute cadence of our simulation outputs to a 10.5 minute time that is representative of early EHT observations. Changing the effective exposure time has very little impact on the rms variability. On the other hand, as the length of each segment increases, both the number of different overlapping segments decreases and the amount of overlap between successive segments increases, as well. Because of this, the range of fractional rms variability decreases as the length of each segment increases.

Zoom In Zoom Out Reset image size

In all five models, the fractional rms amplitude increases rapidly with the length of the segment over which the variability is calculated, for lengths shorter than a few hours. Beyond that, increasing the length of the segment does not contribute significantly to the variability. This is expected because, as we discussed in Chan et al. (2015b), the power spectrum of the 1.3 variability exhibited by our simulations is that of red noise and turns over at timescales longer than a few hours. This is also consistent with the reported turnover timescale for the observer power spectrum of Sgr A* at 1.3 mm (Dexter et al. 2014). Our results suggest that observing runs that are a few hours long will be affected by the full range of variability that our simulations exhibit.

The variability in the interferometric visibilities may, in principle, affect both the parameter estimations based on comparing theoretical models to data and the images that will be reconstructed from the observations. In a companion paper (Kim et al. 2016), we develop a Bayesian method to perform parameter estimation using explicitly the time dependence of GRMHD simulations and the expected variability of the upcoming EHT observables. Even without employing such a method, our results nevertheless suggest that fitting early EHT data using simple models of the accretion flow that do not take into account its intrinsic variability will lead to a reasonably accurate determination of the orientation of the black hole spin on the plane of the sky that will depend only weakly on the flow properties (see, e.g., Broderick et al. 2011; Psaltis et al. 2015). This is true because, in both the disk-dominated SANE models and the jet-dominated MAD models, the visibility amplitudes perpendicular to the spin axes are smoother and vary over longer baselines while the visibilities along the spin axes have significantly more structure and drop faster with baseline length.

Using, on the other hand, simple time-independent models to measure more detailed properties of the black hole, such as the size of its shadow and the magnitude of its spin will be likely hampered by the variability in the flow because such models do not generally allow the image structure to change. For example, the spin of the black hole affects primarily the widths of the crescent-like shapes of disk-dominated images and, hence, the locations and depths of minima in the visibility amplitudes. However, turbulence in the accretion flow causes both the locations and depths of these minima to be highly variable, effectively masking the effect of black hole spin on the image. In order for the EHT observations to lead to accurate determination of the black hole shadow size and spin, the image reconstruction and model fitting algorithms will need to take into account the variability of the underlying images explicitly.
